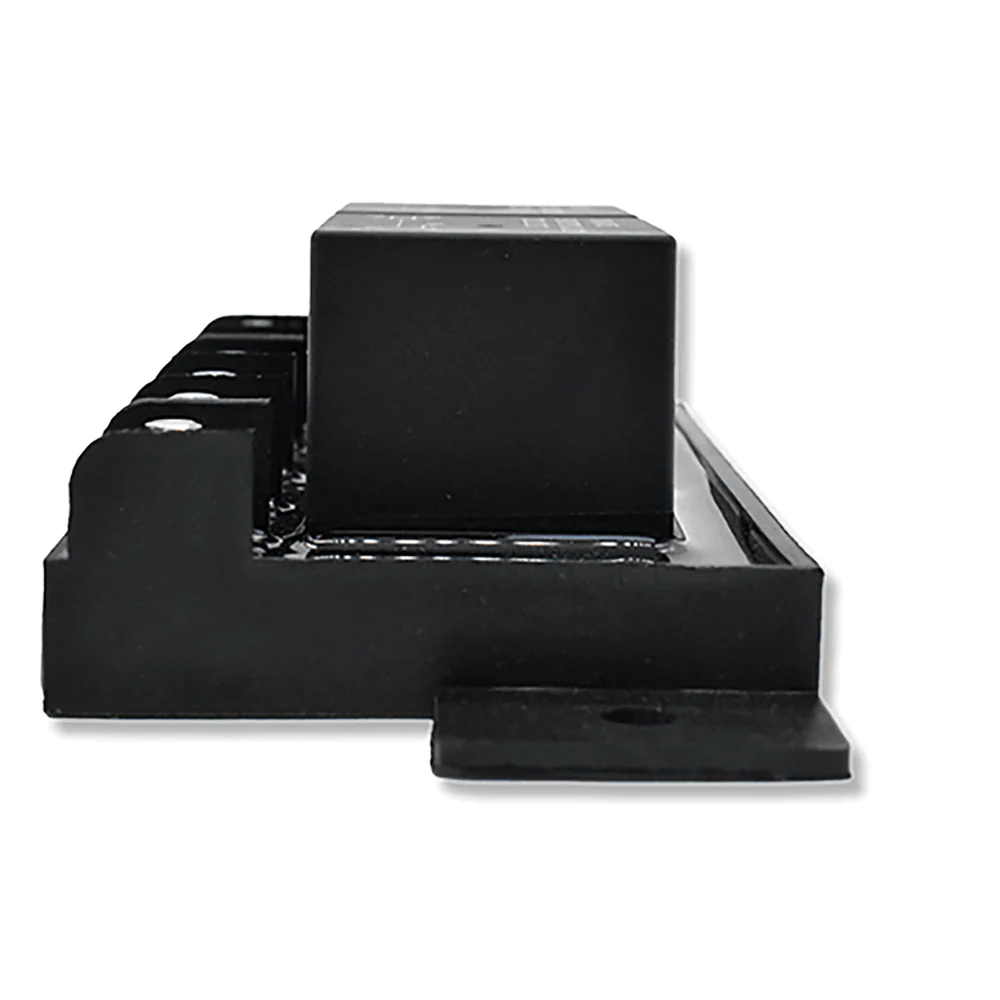

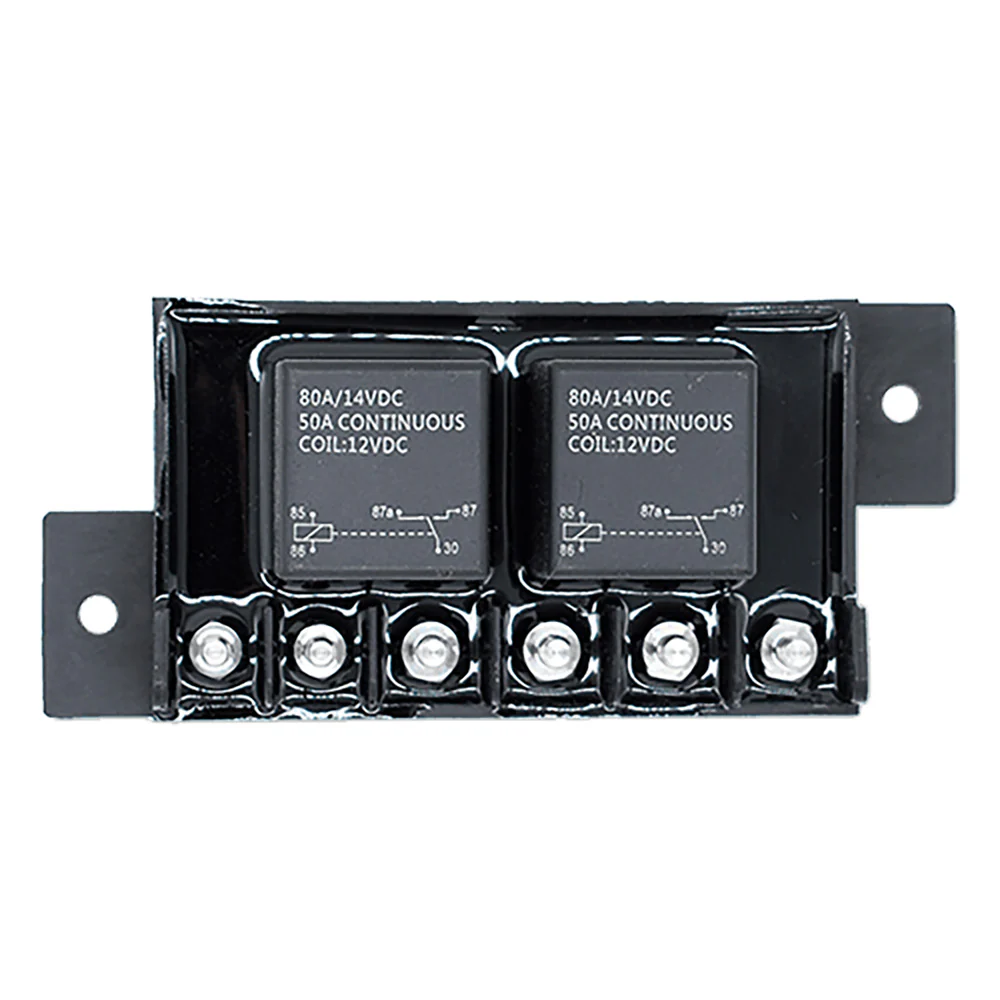

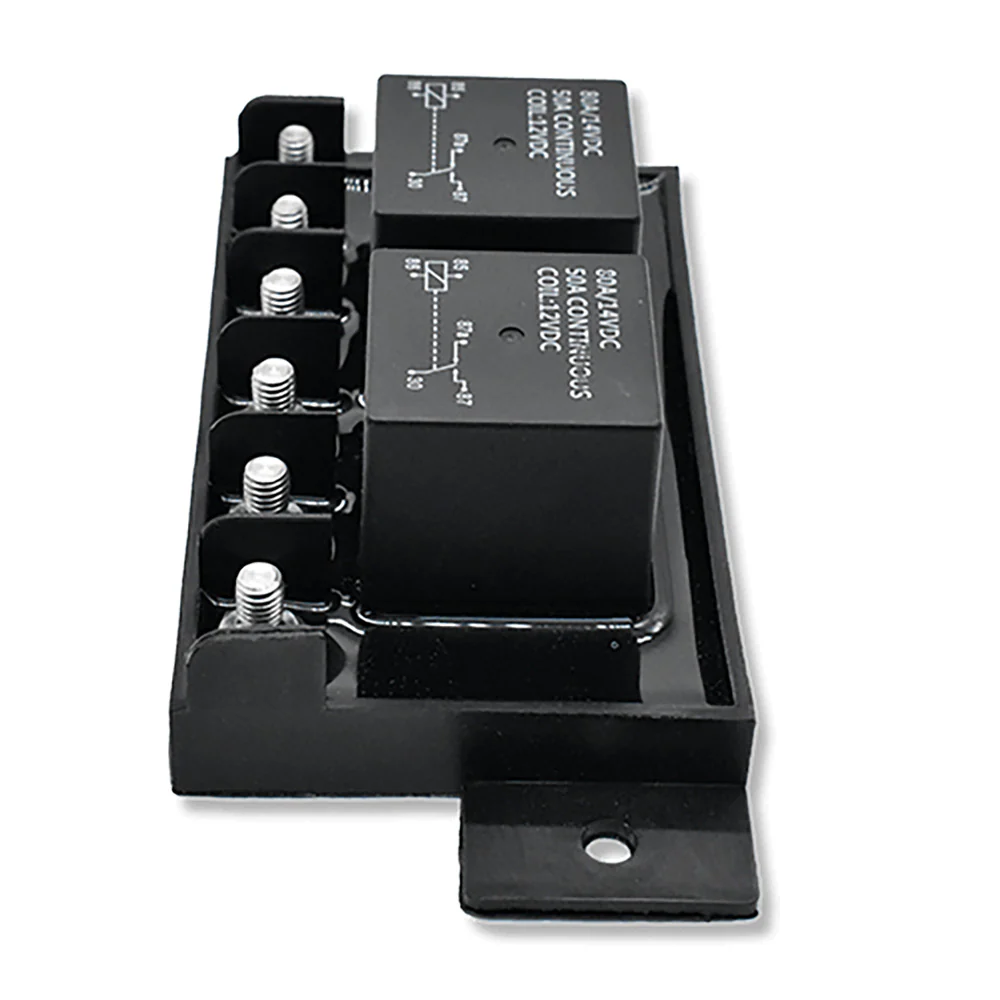

Bluewater Motor Reversing Module [2300-1001-B]
Motor Reversing Module
The forward and reverse module automatically reverses the direction of the motor when the appropriate control circuit is energized with a pulse from a control switch. Dynamic breaking stops the motor when the switch returns to Off. Ideal for tarp or lift applications as well as for use on hoists, hatches, winches, snowplows, intake/exhaust fans, vehicle outriggers, and other reversing applications. Low-profile module saves space. Studs are securely anchored in epoxy. Tin-plated brass studs and hardware for corrosion resistance.
Quick Guide (pdf)
Original: $45.00
-65%$45.00
$15.75
Description
Motor Reversing Module
The forward and reverse module automatically reverses the direction of the motor when the appropriate control circuit is energized with a pulse from a control switch. Dynamic breaking stops the motor when the switch returns to Off. Ideal for tarp or lift applications as well as for use on hoists, hatches, winches, snowplows, intake/exhaust fans, vehicle outriggers, and other reversing applications. Low-profile module saves space. Studs are securely anchored in epoxy. Tin-plated brass studs and hardware for corrosion resistance.
Quick Guide (pdf)
