Harken 102mm Narrow Sheave
Product Description

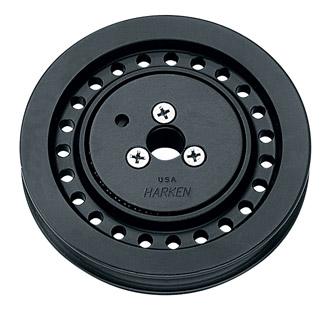

Harken 102mm Narrow Sheave
Narrow high-load sheaves in mastheads improve sail handling, speed sail changes, and allow the use of smaller, lighter halyard winches. Sheaves combine sideload-carrying balls with a PTFE composite bushing for radial loads.
Specifications:
Specifications:
| Footnote | Breaking load based on use of solid 304 stainless shafts. |
| Sheave Ø (mm) | 102 mm |
| Sheave Ø (in) | 4 in |
| Width (mm) | 19 mm |
| Width (in) | 3/4 in |
| Weight (g) | 227 g |
| Weight (oz) | 8 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 7/16 in |
| Maximum working load (kg) | 3742 kg |
| Maximum working load (lb) | 8250 lb |
| Breaking load (kg) | 7484 kg |
| Breaking load (lb) | 16500 lb |
| Maximum wire Ø (mm) | 8 mm |
| Maximum wire Ø (in) | 5/16 in |
| Center pin Ø (mm) | 12.7 mm |
| Center pin Ø (in) | 1/2 in |
$142.78
Original: $407.95
-65%Harken 102mm Narrow Sheave—
$407.95
$142.78
Description
Product Description
Harken 102mm Narrow Sheave
Narrow high-load sheaves in mastheads improve sail handling, speed sail changes, and allow the use of smaller, lighter halyard winches. Sheaves combine sideload-carrying balls with a PTFE composite bushing for radial loads.
Specifications:
Specifications:
| Footnote | Breaking load based on use of solid 304 stainless shafts. |
| Sheave Ø (mm) | 102 mm |
| Sheave Ø (in) | 4 in |
| Width (mm) | 19 mm |
| Width (in) | 3/4 in |
| Weight (g) | 227 g |
| Weight (oz) | 8 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 7/16 in |
| Maximum working load (kg) | 3742 kg |
| Maximum working load (lb) | 8250 lb |
| Breaking load (kg) | 7484 kg |
| Breaking load (lb) | 16500 lb |
| Maximum wire Ø (mm) | 8 mm |
| Maximum wire Ø (in) | 5/16 in |
| Center pin Ø (mm) | 12.7 mm |
| Center pin Ø (in) | 1/2 in |
