Harken 102mm Fixed Mastbase Halyard Lead
Product Description

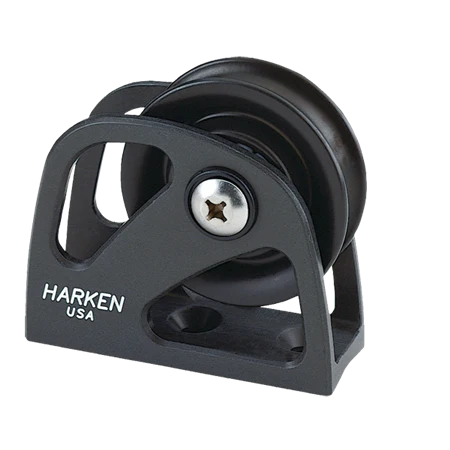

Harken 102mm Fixed Mastbase Halyard Lead
Low-profile mastbase halyard lead blocks are lightweight and can be grouped in a small area at the mastbase. Flared cheeks prevent chafe on the halyards. The high-load bearing system has a PTFE composite bushing and sideload balls. The sheave is hardcoat-anodized aluminum for additional strength.
Specifications:
Specifications:
| Sheave Ø (mm) | 102 mm |
| Sheave Ø (in) | 4 in |
| Length (mm) | 173 mm |
| Length (in) | 6 13/16 in |
| Width (mm) | 50 mm |
| Width (in) | 1 15/16 in |
| Height (mm) | 130 mm |
| Height (in) | 5 1/8 in |
| Weight (g) | 1000 g |
| Weight (oz) | 35.25 oz |
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Number of fasteners | 3 |
| Fasteners (mm) | M16 SHCS mm |
| Maximum working load (kg) | 6000 kg |
| Maximum working load (lb) | 13227 lb |
| Breaking load (lb) | 26455 lb |
| Breaking load (kg) | 12000 kg |
$278.93
Original: $796.95
-65%Harken 102mm Fixed Mastbase Halyard Lead—
$796.95
$278.93
Description
Product Description
Harken 102mm Fixed Mastbase Halyard Lead
Low-profile mastbase halyard lead blocks are lightweight and can be grouped in a small area at the mastbase. Flared cheeks prevent chafe on the halyards. The high-load bearing system has a PTFE composite bushing and sideload balls. The sheave is hardcoat-anodized aluminum for additional strength.
Specifications:
Specifications:
| Sheave Ø (mm) | 102 mm |
| Sheave Ø (in) | 4 in |
| Length (mm) | 173 mm |
| Length (in) | 6 13/16 in |
| Width (mm) | 50 mm |
| Width (in) | 1 15/16 in |
| Height (mm) | 130 mm |
| Height (in) | 5 1/8 in |
| Weight (g) | 1000 g |
| Weight (oz) | 35.25 oz |
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Number of fasteners | 3 |
| Fasteners (mm) | M16 SHCS mm |
| Maximum working load (kg) | 6000 kg |
| Maximum working load (lb) | 13227 lb |
| Breaking load (lb) | 26455 lb |
| Breaking load (kg) | 12000 kg |
