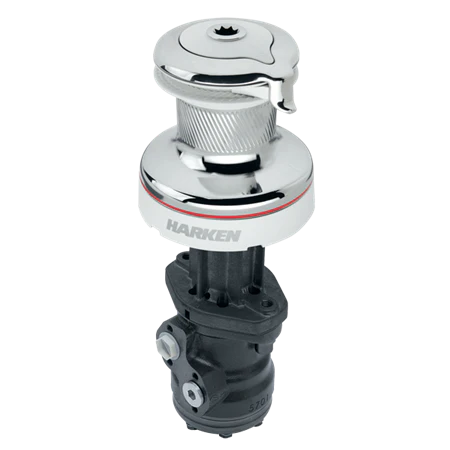

Harken 60 2 Speed Hydraulic Self-Tailing Radial Winch - Chrome with White Trim

Harken 60 2 Speed Hydraulic Self-Tailing Radial Winch - Chrome with White Trim

Powered Radial winches allow crew to trim any size sail with the push of a button. Composite roller bearings reduce friction under load and don't require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability.

Specifications:

Fasteners:  5/16" HH, 5/16" SH (M8 HH, M8 SH)

Number of Fasteners: 6
Gear & Power Ratio:

Gear 1 - 4.80

Gear 2 - 14.40

Power Ratio 1 - 20.30

Power Ratio 2 - 61.00

Dimensions:

Hydraulic (L):  9 1/4" (234mm)
Hydraulic (N):  5 1/8" (130mm)

Material: Chrome

Configuration: Self-tailing

Speed: 2

Drum Diameter:  4 3/4"  (120mm)

Base Diameter: 9 5/16"  (236mm)

Height:  9 11/16"  (246mm)

Weight of Winch and Motor: 47.2 lbs (21.4kg)

Motor Weight:  16.6 lbs (7.5kg)

Line Entry Height:  4 9/16" (116mm)

Minimum Line Diameter:  5/16"  (8mm)

Maximum Line Diameter:  5/8" (16mm)

Fastener Circle: 8" (204mm)
