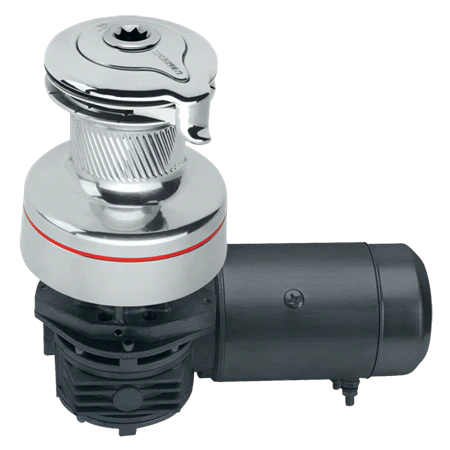

Harken #60 Electric Self-Tailing Radial All-Chrome Winch - 3 Speed
Product Description
Harken #60 Electric Self-Tailing Radial All-Chrome Winch - 3 Speed

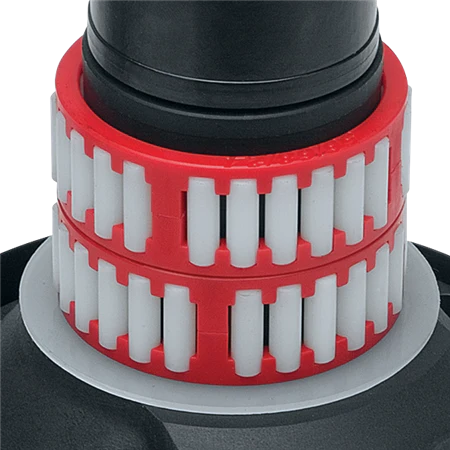

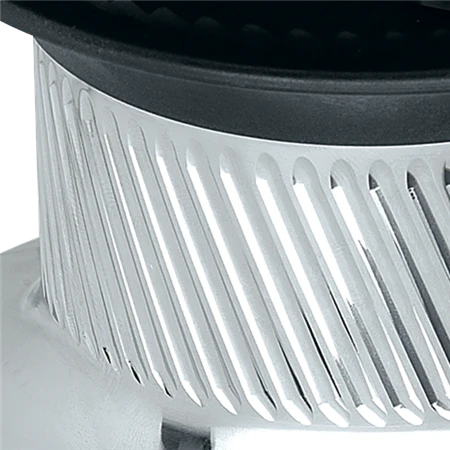

Electric Radial winches let you relax in luxury and trim any size sail with the push of a button. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets. Efficient design allows smaller motor size.
Specifications:
| Height (mm) | 253 mm |
| Height (in) | 9 3/8 in |
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Number of fasteners | 6 |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 204 mm |
| Fastener circle (in) | 8 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Configuration | Self-tailing |
| Speed | 3 |
| Drum Ø (mm) | 120 mm |
| Drum Ø (in) | 4 3/4 in |
| Base Ø (mm) | 236 mm |
| Base Ø (in) | 9 5/16 in |
| Line entry height (mm) | 116 mm |
| Line entry height (in) | 4 9/16 in |
| Gear ratio - 1 | 2.20 |
| Gear ratio - 2 | 4.80 |
| Gear ratio - 3 | 14.40 |
| Power ratio - 1 | 9.20 |
| Power ratio - 2 | 20.30 |
| Power ratio - 3 | 61.00 |
| Material | All-Chrome |
Select Available Power
From $4,859.73
Original: $13,884.95
-65%Harken #60 Electric Self-Tailing Radial All-Chrome Winch - 3 Speed—
$13,884.95
$4,859.73
Description
Product Description
Harken #60 Electric Self-Tailing Radial All-Chrome Winch - 3 Speed
Electric Radial winches let you relax in luxury and trim any size sail with the push of a button. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets. Efficient design allows smaller motor size.
Specifications:
| Height (mm) | 253 mm |
| Height (in) | 9 3/8 in |
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Number of fasteners | 6 |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 204 mm |
| Fastener circle (in) | 8 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Configuration | Self-tailing |
| Speed | 3 |
| Drum Ø (mm) | 120 mm |
| Drum Ø (in) | 4 3/4 in |
| Base Ø (mm) | 236 mm |
| Base Ø (in) | 9 5/16 in |
| Line entry height (mm) | 116 mm |
| Line entry height (in) | 4 9/16 in |
| Gear ratio - 1 | 2.20 |
| Gear ratio - 2 | 4.80 |
| Gear ratio - 3 | 14.40 |
| Power ratio - 1 | 9.20 |
| Power ratio - 2 | 20.30 |
| Power ratio - 3 | 61.00 |
| Material | All-Chrome |
