Harken #60 Electric 3 Speed Self-Tailing Radial Chrome Winch
Product Description

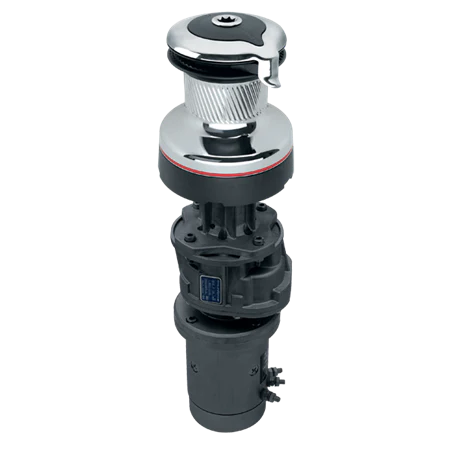

Harken #60 Electric 3 Speed Self-Tailing Radial Chrome Winch

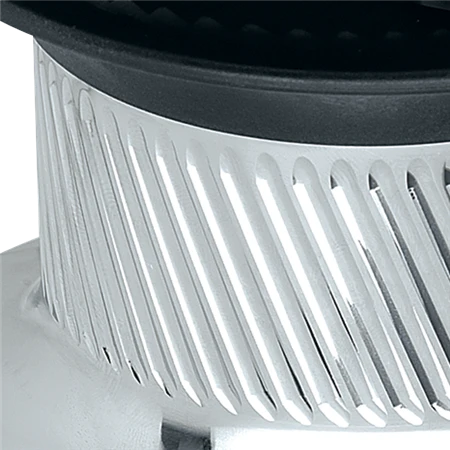

Electric Radial winches let you relax in luxury and trim any size sail with the push of a button. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets. Efficient design allows smaller motor size.
Specifications:
Electric Radial winches let you relax in luxury and trim any size sail with the push of a button. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets. Efficient design allows smaller motor size.
Specifications:
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Number of fasteners | 6 |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 204 mm |
| Fastener circle (in) | 8 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Configuration | Self-tailing |
| Speed | 3 |
| Drum Ø (mm) | 120 mm |
| Drum Ø (in) | 4 3/4 in |
| Base Ø (mm) | 236 mm |
| Base Ø (in) | 9 5/16 in |
| Line entry height (mm) | 116 mm |
| Line entry height (in) | 4 9/16 in |
| Material | Chrome |
Select Available Power
From $3,499.98
Original: $9,999.95
-65%Harken #60 Electric 3 Speed Self-Tailing Radial Chrome Winch—
$9,999.95
$3,499.98
Description
Product Description
Harken #60 Electric 3 Speed Self-Tailing Radial Chrome Winch
Electric Radial winches let you relax in luxury and trim any size sail with the push of a button. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets. Efficient design allows smaller motor size.
Specifications:
Electric Radial winches let you relax in luxury and trim any size sail with the push of a button. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets. Efficient design allows smaller motor size.
Specifications:
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Number of fasteners | 6 |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 204 mm |
| Fastener circle (in) | 8 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Configuration | Self-tailing |
| Speed | 3 |
| Drum Ø (mm) | 120 mm |
| Drum Ø (in) | 4 3/4 in |
| Base Ø (mm) | 236 mm |
| Base Ø (in) | 9 5/16 in |
| Line entry height (mm) | 116 mm |
| Line entry height (in) | 4 9/16 in |
| Material | Chrome |
