Maretron Mid Double-Ended Cordset - 4 Meter - Blue [DM-DB1-DF-04.0]

Maretron Mid Double-Ended Cordset - 4 Meter - Blue [DM-DB1-DF-04.0]

Maretron Mid Double-Ended Cordset - 4 M Blue

Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"

    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

    Specifications:

    • Connection Gender: Male-Female
    • Data Interface: NMEA 2000
    • Cable Length (Meters): 4m
    • NMEA 2000 Connectors: Backbone/Drop Cables
    • Box Dimensions: 1"H x 7"W x 10"L WT: 1 lbs
    • UPC: 873804001937
    • $18.55

    Original: $52.99

    -65%
    Maretron Mid Double-Ended Cordset - 4 Meter - Blue [DM-DB1-DF-04.0]—

    $52.99

    $18.55

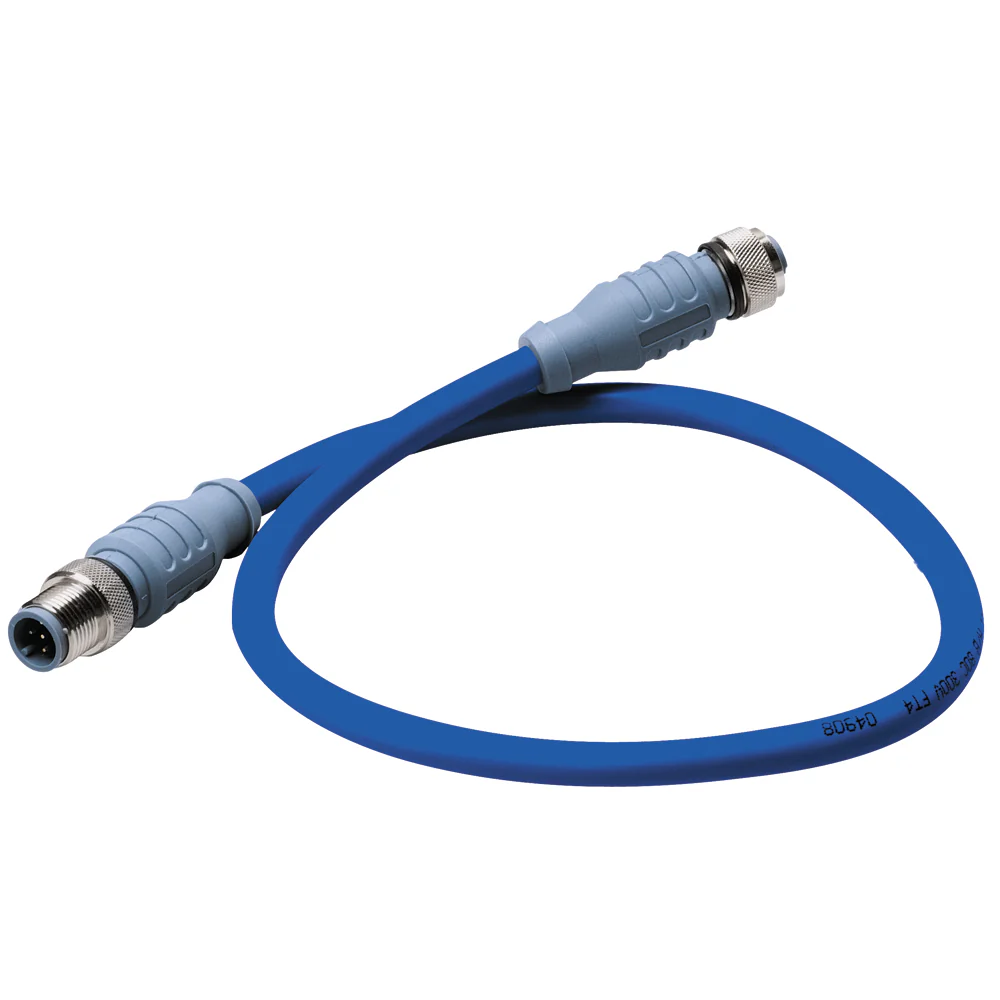

    Product image 1

    Description

    Maretron Mid Double-Ended Cordset - 4 M Blue

    Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"

    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

    Specifications:

    • Connection Gender: Male-Female
    • Data Interface: NMEA 2000
    • Cable Length (Meters): 4m
    • NMEA 2000 Connectors: Backbone/Drop Cables
    • Box Dimensions: 1"H x 7"W x 10"L WT: 1 lbs
    • UPC: 873804001937
