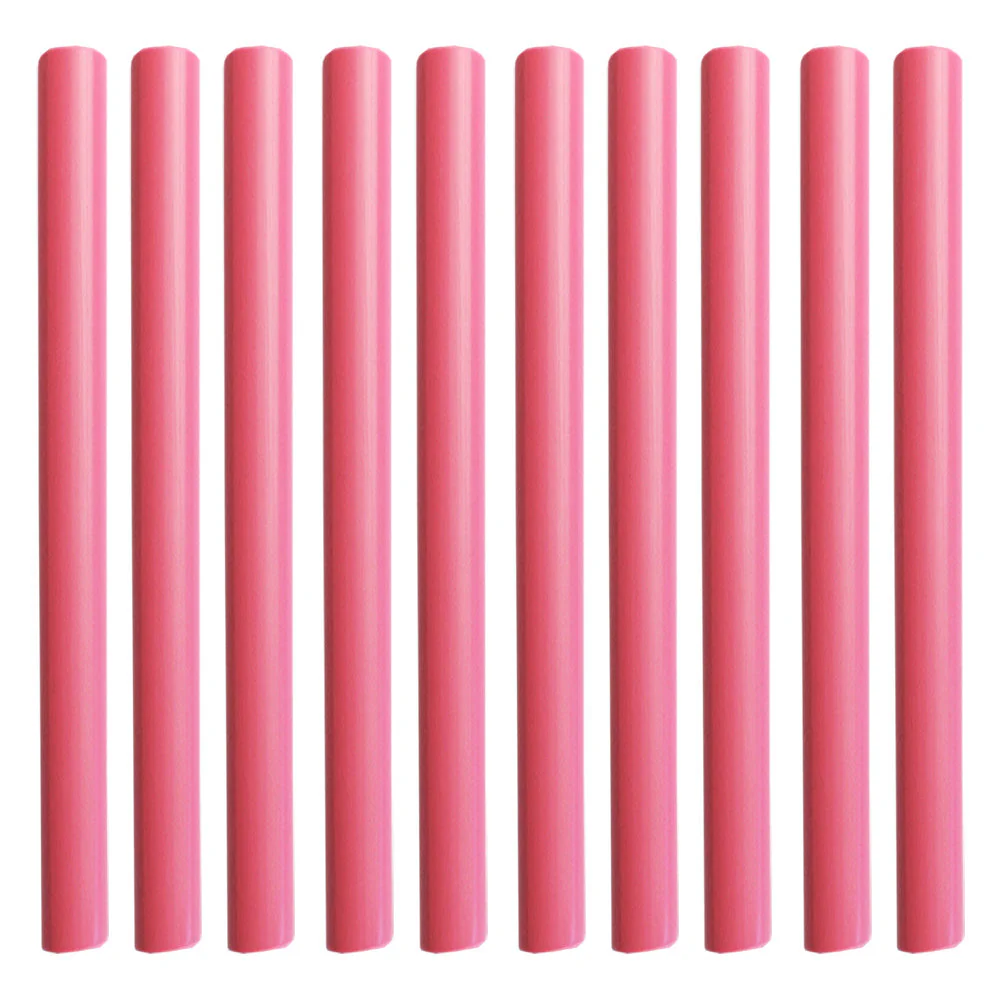

Pacer Battery Cable Heat Shrink Tubing - 1/4" x 12" - Red (10-Pieces) [BEHS1/4-12RD-10]

Battery Cable Heat Shrink Tubing - 1/4" x 12" - Red (10-Pieces)

BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated.  When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic.  Insulation varies with different types of wires, different diameters or tubing may be required.  When choosing a size, consider any components or connectors that may need to be covered.

Features:

• Highly abrasion and impact-resistant
• Easy installation, shrinks when heated over 120 °C
• The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
• A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.
• Any connection in harsh conditions
• Adhesive lining provides a barrier against contaminants
• Excellent resistance to acids and alkalis
• Good resistance to fuel, oil, and solvents

Applications:

• Splice sealing
• Primary insulation
• Cable/jacket repair
• Direct burial/submersible
• Strain relief

Compliances:

• MIL-I-23053/15 Class 2

Specifications:

• Type: Heat Shrink
• Box Dimensions: 1"H x 3"W x 12"L WT: 0.1 lbs
• UPC: 840248214520
